Custom Kinds of PCB Bus Bars
Busbar is an electronic component that makes complex power distributions simpler, more affordable and flexible.
PCBs busbars are a special type of printed circuit board (PCB) that stands out from traditional PCBs due to its integrated conductive busbars. These bus bars are typically made of copper or aluminum and are positioned on the surface or within the PCB. They are used to connect electronic components, devices or connectors and carry electrical current.
Why us for your High Current Solderable PCB Busbars Project?

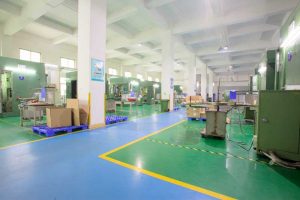

Heju Stamping is a professional OEM stamping manufacturer of produing Pcb busbars and SMT/SMD busbars. With 30yrs experienced engineer teams, we can provide expert, hands-on advice regarding manufacturing. We can assist customer to select the proper material, dimensions, tolerances, and optimal performance with the best cost solutions.

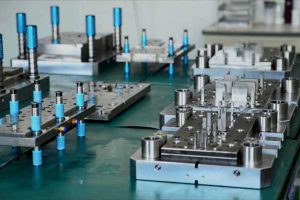

Equipped with in-house tooling rooms, Heju Stamping can design and build progressive stamping dies to produce customized electric vehicle busbars solutions that enable tight tolerance specifications for busbar performance and automatic assembly needs. performance with the best cost solutions.
Characteristics of PCB Busbars
Efficient Heat Dissipation
Busbar PCBs are known for their excellent heat dissipation capabilities. Integrated conductive busbars efficiently conduct and dissipate heat generated within the circuit, making it ideal for high power applications.
Enhanced Electrical Performance
The integration of conductive busbars reduces the overall resistance and inductance of the circuit, thereby improving electrical performance.
Smaller Weight and Packaging Space, Better Flexibility
Bus Bar PCBs optimize space utilization through their integrated conductive bus bars. Unlike traditional wiring systems, busbar PCBs can save space and reduce the overall footprint of the electronic system.
